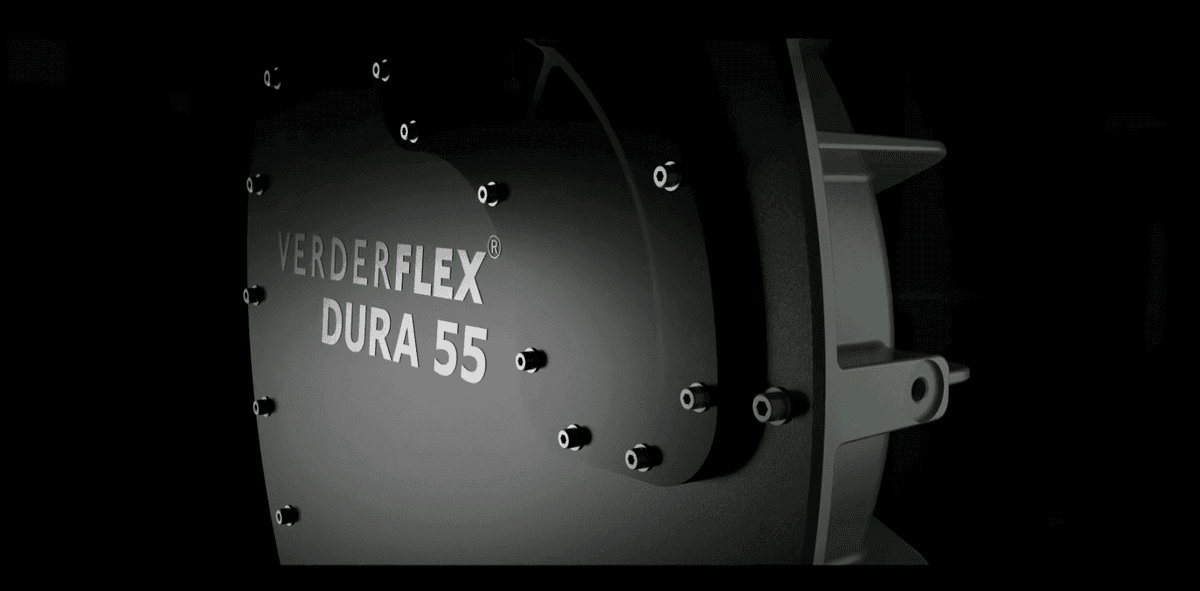

VerderFlex Dura 45 - 80
Hose pumps - also known as peristaltic pumps - are highly suitable for pumping a wide variety of media with high dosing accuracy and are called a true problem solver.
Applications
With its simple and robust construction, it is an ideal pumping solution for applications where media that can be abrasive, viscous, and contain particles need to be pumped.
Maintenance and costs
Since the only wear part in the pump is the hose, using a hose pump results in minimal maintenance and low operating costs.
Self-priming and no dry running
The hose pump is also effective for tasks where there are priming requirements, as they can provide up to 90% vacuum and where air entrained products are not a challenge to pump compared to dry running, as it does not have a mechanical seal.
Food industry
The hose pump is also used within the food industry, and here the hoses are naturally supplied with EC1935/2004 approval.
Increased capacity and significantly lower operating costs
Peristaltic hose pump
Innovative flange design from Verderflex simplifies service
Stainless Steel Connections
The pump comes standard with DIN flanges in stainless steel. As an option, VerderFlex pumps can also be supplied with sanitary connections such as SMS union, DIN 11851, and Tri-Clamp 32676 as an option.
Linings for aggressive media
When pumping extremely aggressive media where stainless steel is not sufficiently resistant, the connections can be provided with linings in plastic PP or PVDF.
2-part flanges make servicing easier
The patented 2-part flanges provide better access to the bolts, enabling the use of a power tool. Flanges are easily removed by turning 1/4 of a turn.
Efficient hose fixing
The hose is efficiently fixed using the conical clamping. The O-ring eliminates the risk of leakage to the surroundings.
Exploded diagram of VerderFlex Dura 55
Stable bearing ensures long service life
The unique design with the bearing located directly below the centerline of the hose reduces the load on the drive line significantly and allows for the use of standard gear motors. The stable bearing combined with the fine tolerances of the hoses also ensures that the hose is never over- or under-compressed, resulting in a significantly longer service life of the hoses.
Taper bushing protects against overload and foreign objects
The rotor hub is fixed to the shaft using a friction coupling that releases if the allowable torque is exceeded. This ensures that the drive line is not overloaded if the pump, for example, becomes blocked due to a foreign object.
Stable pump housing with efficient heat transmission ensures long hose life
The exceptionally stable pump housing with built-in cooling fins ensures efficient hose cooling, increasing the hose's lifespan.
Standard DIN standardized gear motors
The DURA series uses standard DIN standardized gear motors. This means that it is possible to use multiple brands of gear motors.
HIGHEST DISPLACEMENT PER REVOLUTION ON THE MARKET
The Dura series delivers more per stroke than other peristaltic pumps.
The high capacity, combined with hoses that can withstand up to 15 million compressions, ensures extra long life.
| Type | Maks. kapacitet | Maks. afgangstryk | Maks. temperatur | Maks. partikelstørrelse | Certifikater | Maks. løftehøjde |
|---|---|---|---|---|---|---|
| Dura 5 | 23 l/h | 8 bar | 50 °C | 1.25 mm | Atex | 9.5 m wc |
| Dura 7 | 39 l/h | 8 bar | 50 °C | 1.75 mm | Atex | 9.5 m wc |
| Dura 10 | 222 l/h | 12 bar | 65 °C | 2.5 mm | Atex. FDA. EC/1935 | 9.5 m wc |
| Dura 15 | 593 l/h | 12 bar | 65 °C | 3.75 mm | Atex. FDA. EC/1935 | 9.5 m wc |
| Dura 25 | 2387 l/h | 12 bar | 65°C | 6.25 mm | Atex. FDA. EC/1935 | 9.5 m wc |
| Dura 35 | 5292 l/h | 16 bar | 65 °C | 8.75 mm | Atex. FDA. EC/1935 | 9.5 m wc |
| Dura 45 | 12240 l/h | 16 bar | 90 °C | 11.25 mm | Atex. FDA. EC/1935 | 9.5 m wc |
| Dura 55 | 15300 l/h | 16 bar | 90 °C | 13.75 mm | Atex. FDA. EC/1935 | 9.5 m wc |
| Dura 55HF | 16500 l/h | 16 bar | 100 °C | 15 mm | 9.5 m wc | |
| Dura 65 | 33000 l/h | 16 bar | 100 °C | 16.25 mm | FDA. EC/1935 | 9.5 m wc |
| Dura 80 | 42000 l/h | 16 bar | 100 °C | 20 mm | ATEX. FDA CFR21. EC/1935 | 9.5 m wc |
